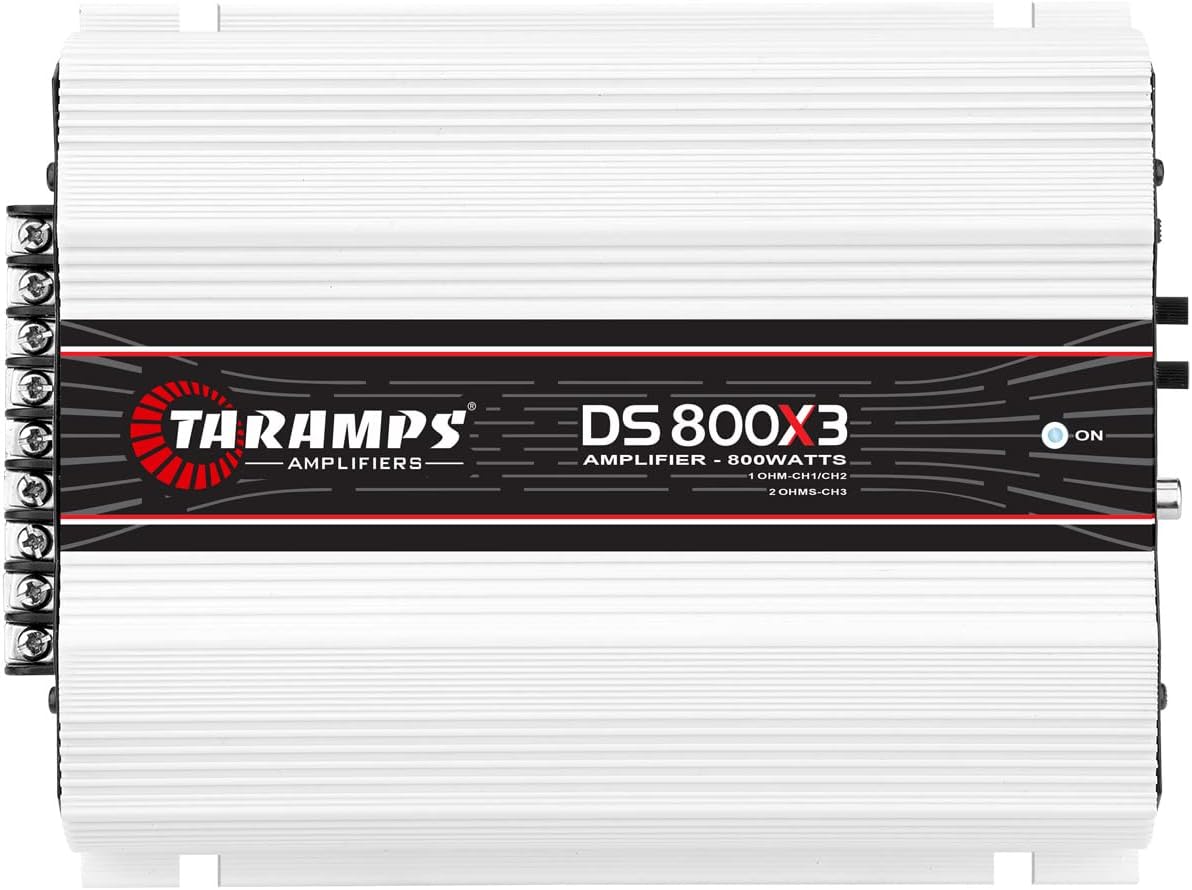

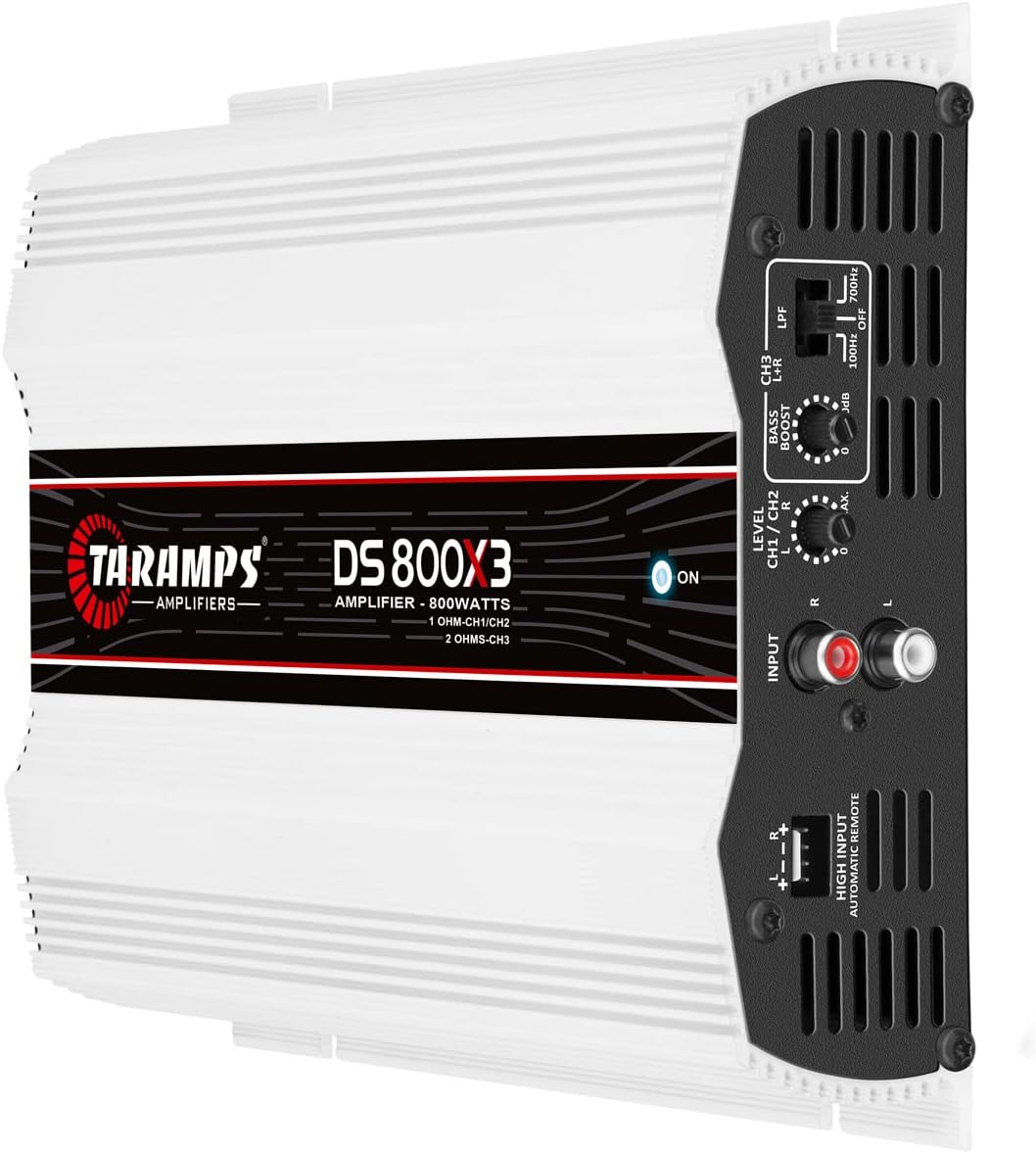

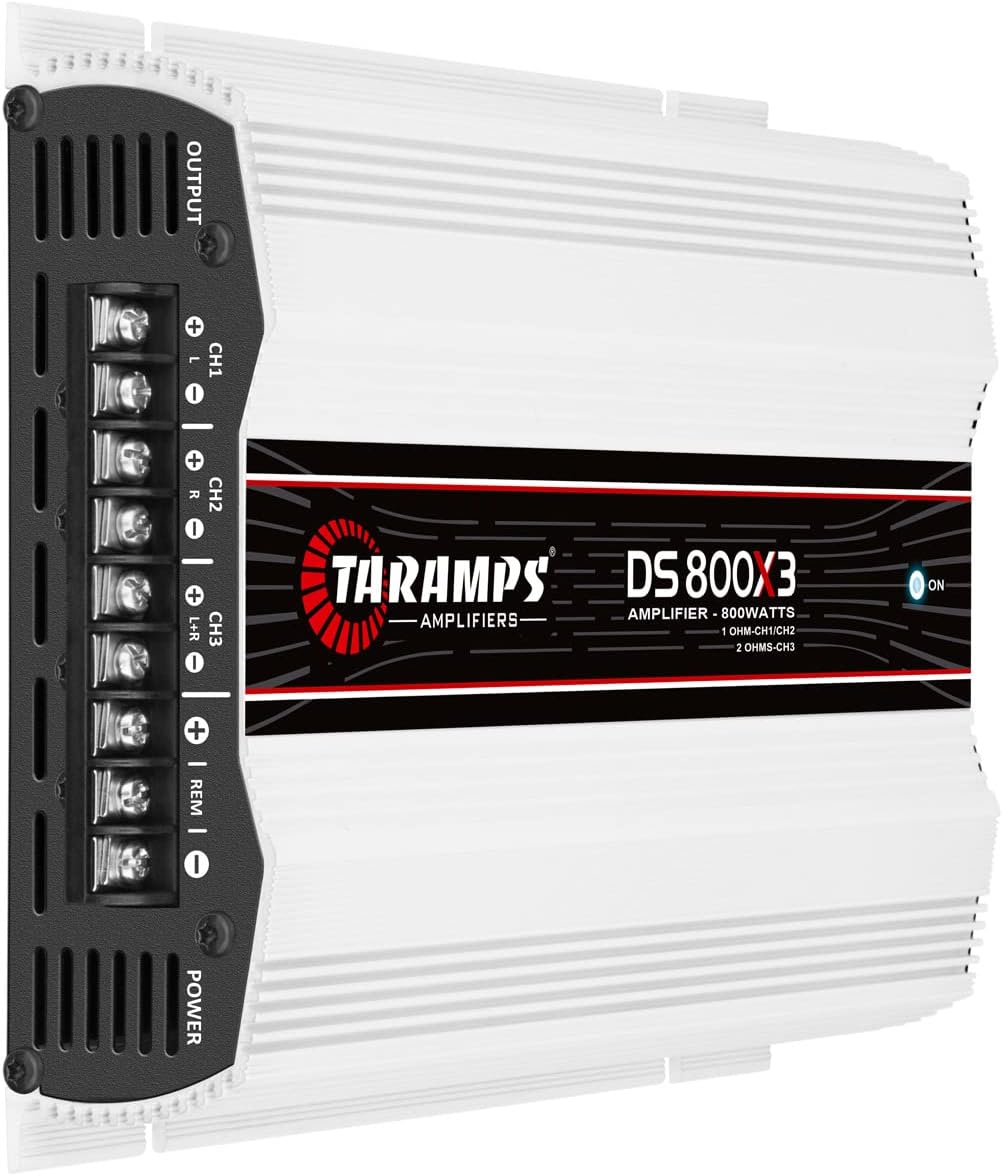

Taramps DS800X3.1 DS 800x3 800 Watts RMS 3 Channels 1 Ohm Amplifier Multichannel Class D Full Range, Crossover High/Low Pass Bridgedable, Aluminium, RCA, Car Show Power System
US$231.91
Estimated delivery: 2–7 business days ✓ Free shipping — over $200Description
Product Details Item Dimensions:6.81 x 2.05 x 8.94 inches Item Weight:3.2 pounds Mounting Type:Surface Mount Voltage:6 volts Included Components:Taramps DS 800x3 800 Watts RMS 3 Channels 1 Oh...
Delivery & Returns
Free shipping $200+
Orders of $200 or more ship free. No code needed.
Reviews
Kitemere
More options
Product Details
- Item Dimensions:6.81 x 2.05 x 8.94 inches
- Item Weight:3.2 pounds
- Mounting Type:Surface Mount
- Voltage:6 volts
- Included Components:Taramps DS 800x3 800 Watts RMS 3 Channels 1 Ohm Amplifier Multichannel Class D
- Number of Items:1
- Unit Count:1 Count
- Part Number:DS800X3.1
- Maximum Supply Voltage:16 volts
- Minimum Supply Voltage:12 volts
- Number of Channels:3
- Output Power:800 watts
- Maximum Output Power:800 Watts
- Material Type:Aluminium
- Specification Met:CE, FCC
- Model:DS800X3.1
- Number of Packs:1
About this item

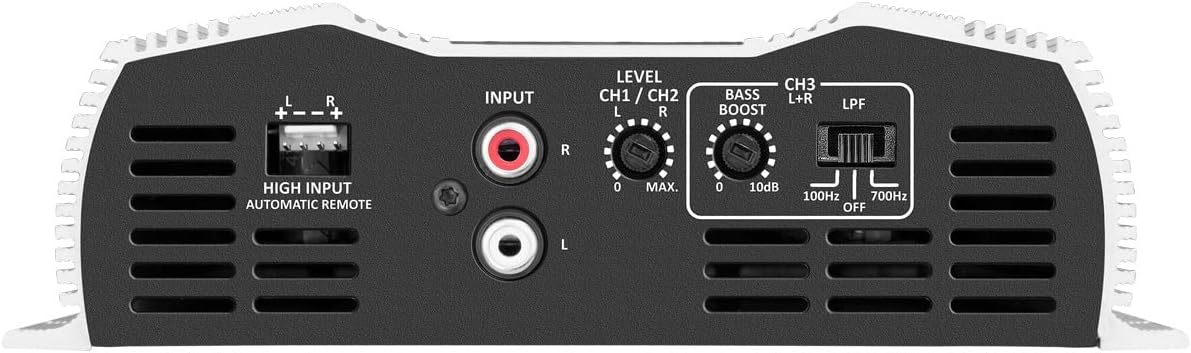

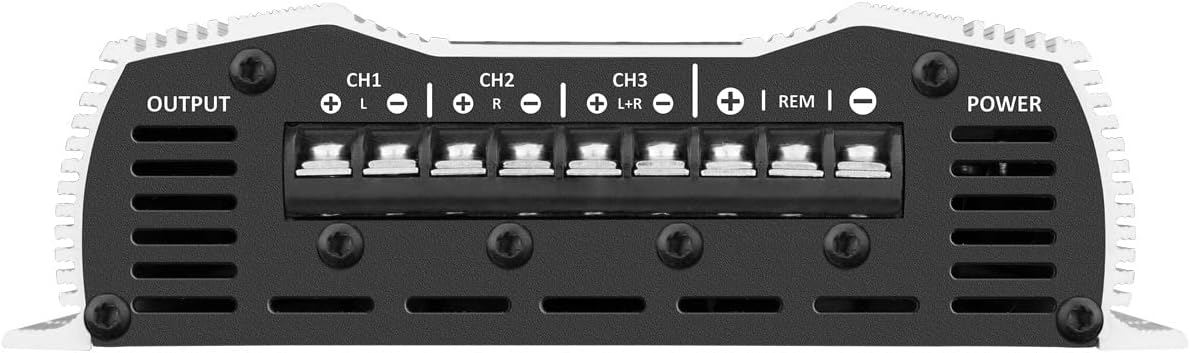

- Taramps designed the DS 800X3 primarily for those who want to use the vehicle original player; this is possible because, in addition to the RCA input, the DS800x3 also has a wired input. With a maximum power of 800 Watts RMS with impedance of 1 and 2 OHMS, it is a 3-channel amplifier, two of them with 200 Watts RMS for playing from mid to treble and the other one is FULL RANGE, with 400 Watts RMS. It is to say, you have countless options in a single product.
- TECHNICAL INFORMATION
- Operation Class : Class D
- Number of Channels : 3
- Maximum Power : @ 12.6 VDC: 800W RMS CH1/CH2 (2 x 200W RMS) 1OHM
- CH3 (1 x 400W RMS) 2OHMS
- Input Sensitivity : 250mV
- Signal to Noise Ratio : >88dB
- Frequency Response : CH1/CH2 100Hz ~ 25KHz
- 10Hz ~ 100Hz (LPF = 100Hz)
- CH3 10Hz ~ 700Hz (LPF = 700Hz)
- 10Hz ~ 25KHz (LPF = OFF)
- Crossover High Pass (hpf) : (CH1 / CH2) 100Hz (-12dB/8ª) Fixed
- Crossover Low Pass (lpf) : (CH3) 100Hz, 700Hz, OFF (-12dB/8ª) Selectable
- Input Impedance : 10K Ohms (RCA) and 1K Ohms (Wire)
- Output Impedance : 1 Ohm
- Protection System : Output overload
- Min. Supply Voltage : 9 VDC
- Maximum Power Supply Voltage : 16 VDC
- Consumption At Rest : 1.0A
- Maximum Music Consumption : @12.6VDC: 51A
- Maximum Consumption in Sinusoidal Signal : 102A
- Dimensions (wxhxd) : 6.81" x 2.05" x 8.94" (173 x 52 x 227mm)
- WEIGHT : 3.15lb (1,43kg)
- EAN 7898556844949
